Hello again and preview new 7-segment driver board

[Wendy]

Hello again to All of you,

Don't know when was the last time I posted on FlightSim forums but I think it's already a few years. Why... I had my reasons and I do not want to go into detail, but I still followed what was going on, silently, just reading.

Now maybe it's time to break the silence again. Some of you probably will know me and for those who don't, I was the one who started the PoKeys story a few years ago, I also encouraged to use a CNC. I will try to actively participate again and if someone has a question concerning some of my interface boards or PoKeys card in general or some other question, I will be happy to answer your questions to my best knowledge.

For now I want to give you a preview on my new 7-segment boards which are almost ready to go in production but I do want to ask your opinion and/or suggestions before the final versions are made. The old boards will continu to be produced but the new ones have a big advantage. No difficult 7-segment displays wiring.

This 7-segment system consists of two parts, first of all the driver board and a second part, the display which has a connector to connect to the driver board.
So very easy and no wiring any more. Only 4 wires to connect to the PoKeys card and 2 wires for the 5 Volt DC. The driver board is based on my previous driver but now fully with SMT components and with a very small size... only 45x23mm. With these measurements it is a perfect fit behind the display, as you will see it clearly in the pictures where I present them behind a COMM panel.

At first there will be a 6 digit display suitable for 5 and 6 digit radio's/NAV or FLT ALT
and LAND ALT. Later I will add a 7 digit display to connect with the driver board. The driver itself is capable of driving 8 digits and can also be used separate.

I'll invite you to look at the pictures and please tell me if you like it or if you have
suggestions, I'll be glad to hear about it.

Enjoy, Wendy

[Ridgenj]

HI Wendy, happy to see you back and specially to see you in this forum. As you know, I am your customer and always felt that your good advice to me was getting lost to the community.
Many of us here have migrated to Pokeys because of the advantage with the ethernet connection and the native support by proSim737.
Trevor and Bob are great guys and they watch that we all remain on topic and enjoy our hobby and the exchange of ideas and advice.
Once again, welcome back my friend.
Cheers
Luis

Sent from my SM-N910T using Tapatalk

[Ridgenj]

Wendy, please sing me on for displays for Flt ALT and Land ALT once available
cheers
Luis

Sent from my SM-N910T using Tapatalk

[Wendy]

Thank Luis, I'll let you know.

regards, Wendy

[Bob Reed]

Hello Wendy and welcome...Back. I am glad you have decided to share what you are up to and we try to be more like family here. If there is anything, at anytime you need help with, please contact me! Enjoy your stay here as I am sure our reader will enjoy your stay here.

[Flying_Fox]

Thanks Wendy! Good to see you here.

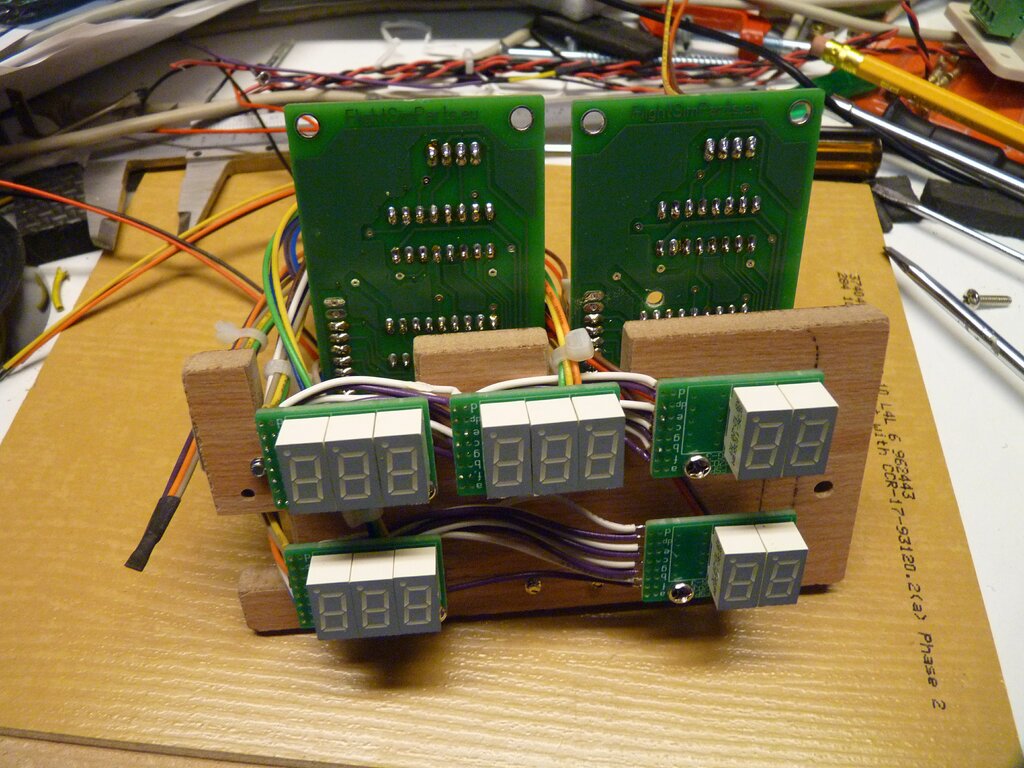

I am a proud user of your 7-segment boards (old version):
