My version of the BRFS quadrant...

[geneb]

One of the projects in Mike Powell's new book Building Recreational Flight Simulators is a three (or more!) lever throttle quadrant.

This project was a near perfect match for the '109 cockpit project so I decided to use it - with a few important changes.  The original quadrant takes up more room than I wanted to dedicate to it, so I fiddled with it a bit.

Here's what my version looks like:

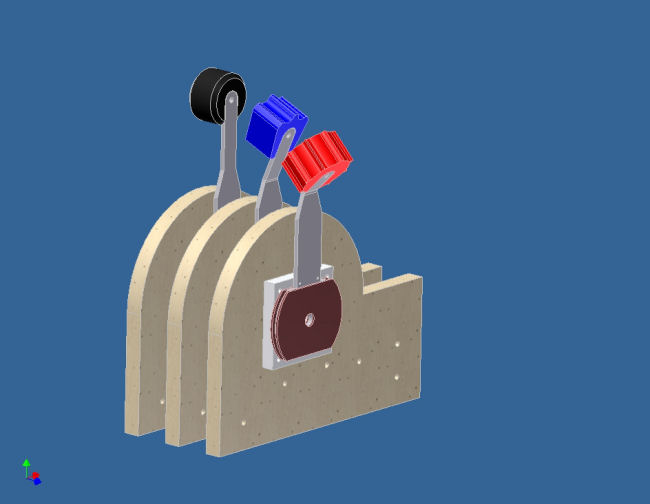

Quarter view:

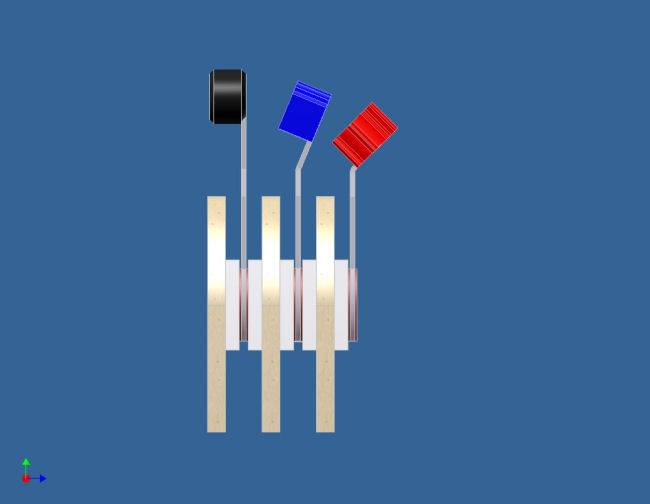

End view:


The quadrant is 8-1/2" long and 6-1/2" high and just about 6-5/8" wide with the end cap that's not shown.

The lever arms are .125" 6061 aluminum and the knobs will be machined from 1" acrylic.  Hopefully, I'll get some parts cut today.

g.

[Bob Reed]

Gene. THis is awsome stuff. Thanks for taking the time to post it here!

[geneb]

Here's video of the knob cutting operation:

1.  The windup: Cutting Throttle Quadrant Knobs, Pt 1 of 3
2.  The er...pitch? : Cutting Throttle Quadrant Knobs, Pt 2 of 3
3.  We can haz fail? : Cutting Throttle Quadrant Knobs, Pt 3 of 3

To recap:  Downshear, BAD.  Upshear, GOOD!

*facepalm*

g.

[Trevor Hale]

Amazing...  Truly Amazing...  Thanks Gene

[geneb]

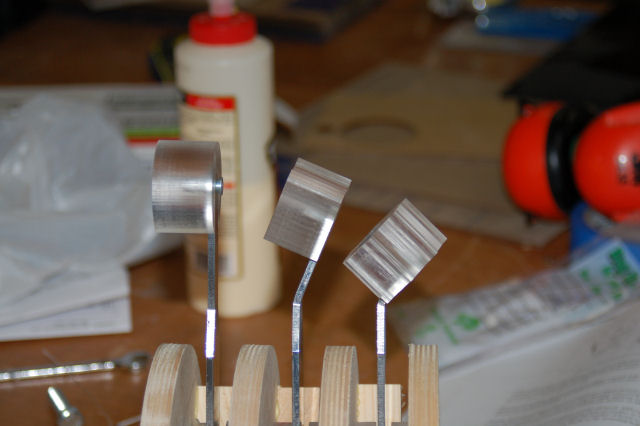

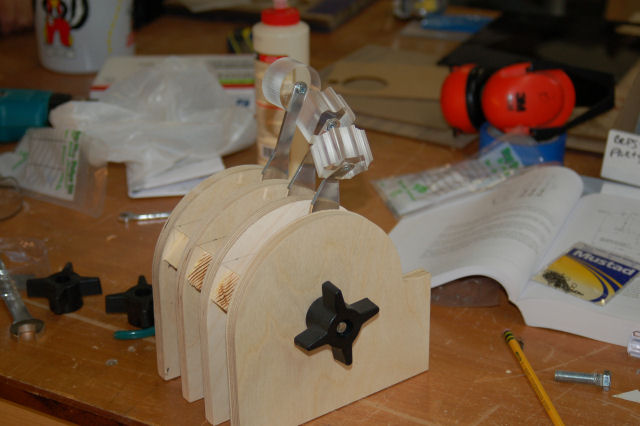

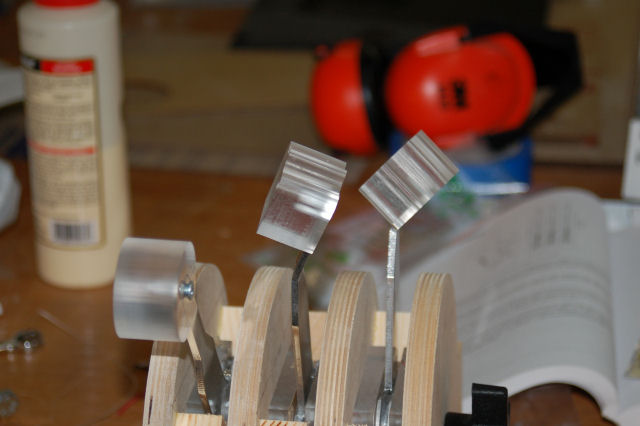

All the quadrant parts are done and here is what it looks like assembled, but unfinished:







With any luck, I'll have it all rigged and tested tomorrow.

g.

[Trevor Hale]

Great stuff Gene.

I gather your new bit showed up for the CNC.  Looks great.   I can't wait to see it painted.

Trev

[geneb]

Yep.  If you head over to http://www.simpits.org/geneb you can see the rest of the pictures and updates.

There's shots of the levers and how the knobs were done.

g.
