My 737 linked yokes build - yokes completed!

[Flying_Fox]

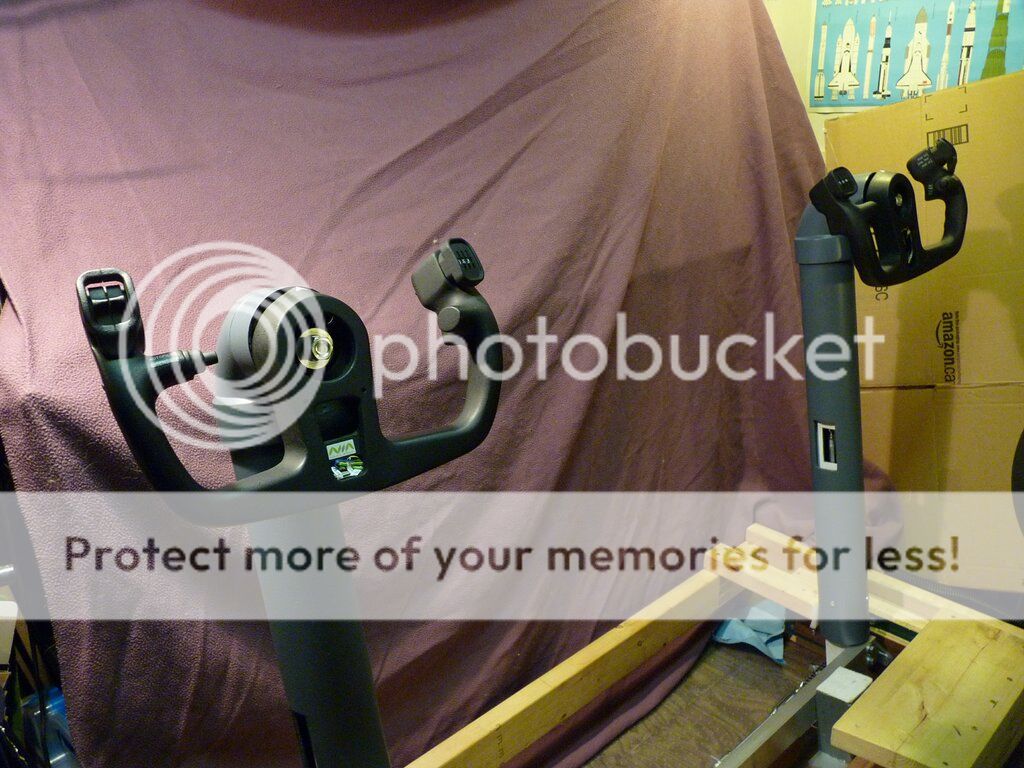

Well, my 737 linked yokes build practically completed and ready for install into sim.



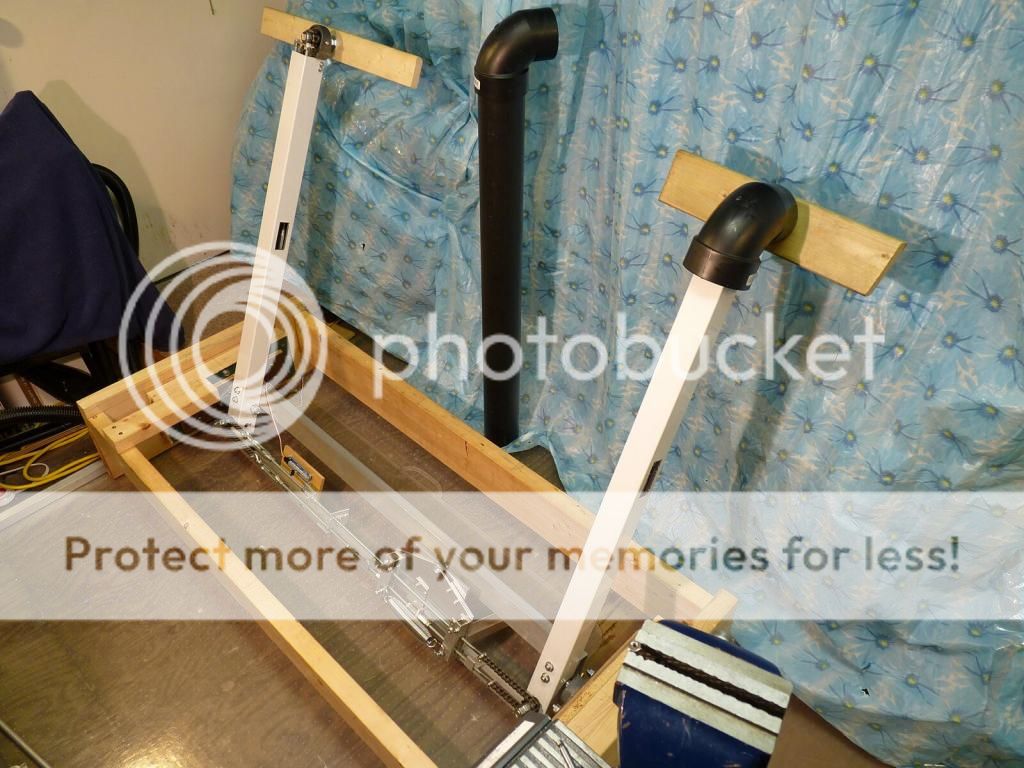

compare to this previous photo:


Main recent development was the actual yokes installation. I bought the yokes from aviasimulation.com. They are 100% copies from 737 yokes and made from hard plastic (same as goes for construction hats).

Here is the picture the yokes during production process.


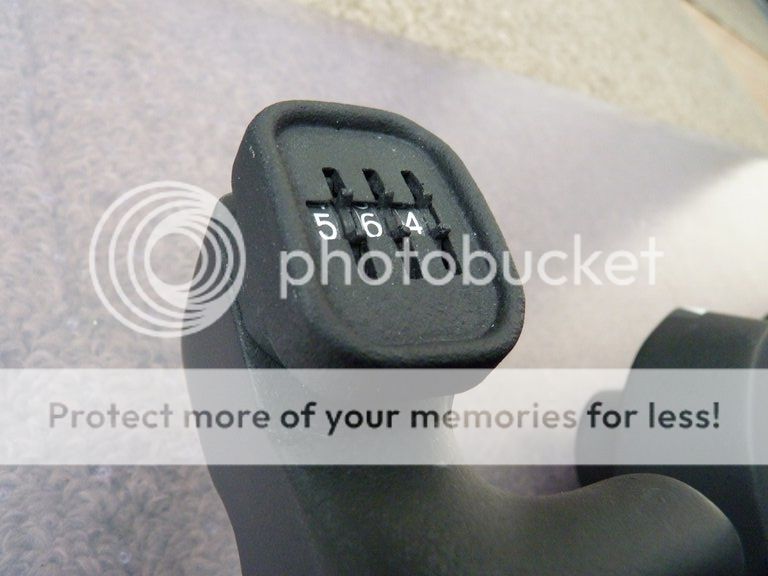

The yokes I have received have all switches are fully wired and have backlighted trip counters.  Excellent quality. I am very happy with this acquire.

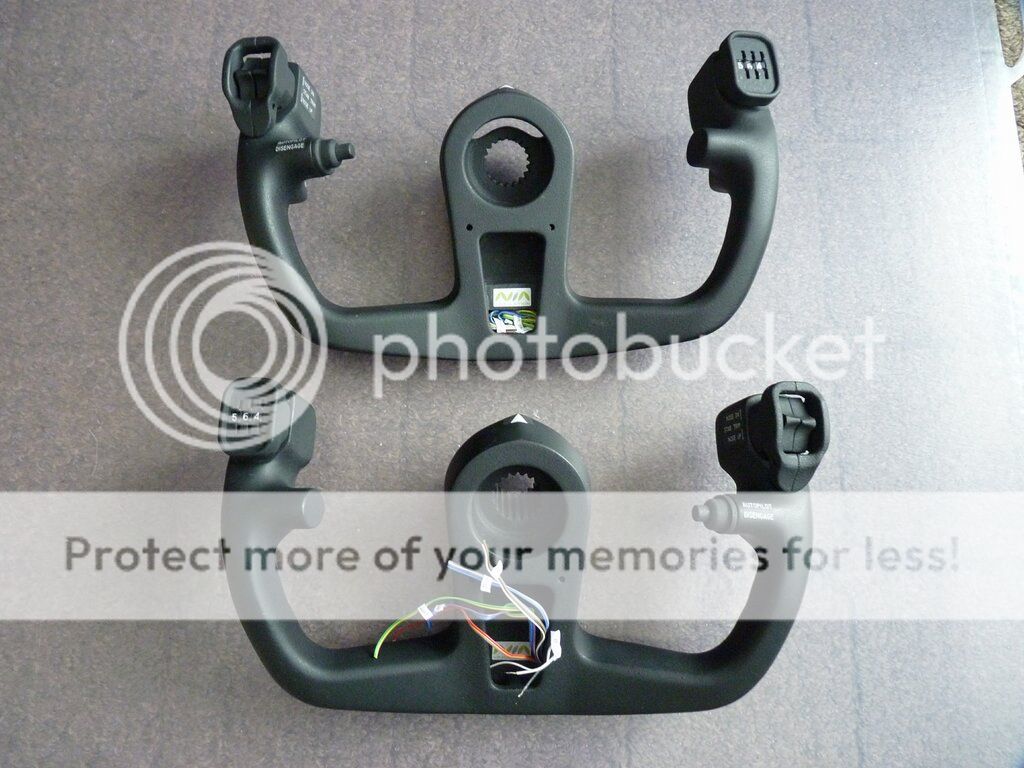

Here are the pictures:









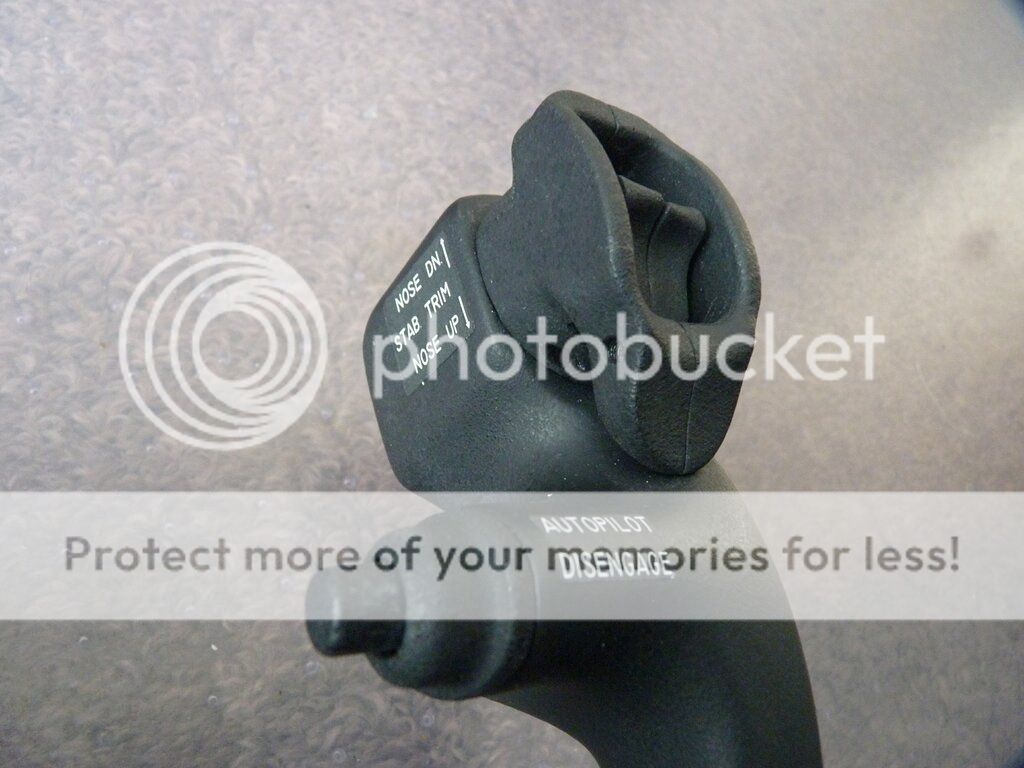

Trim switches are separate:


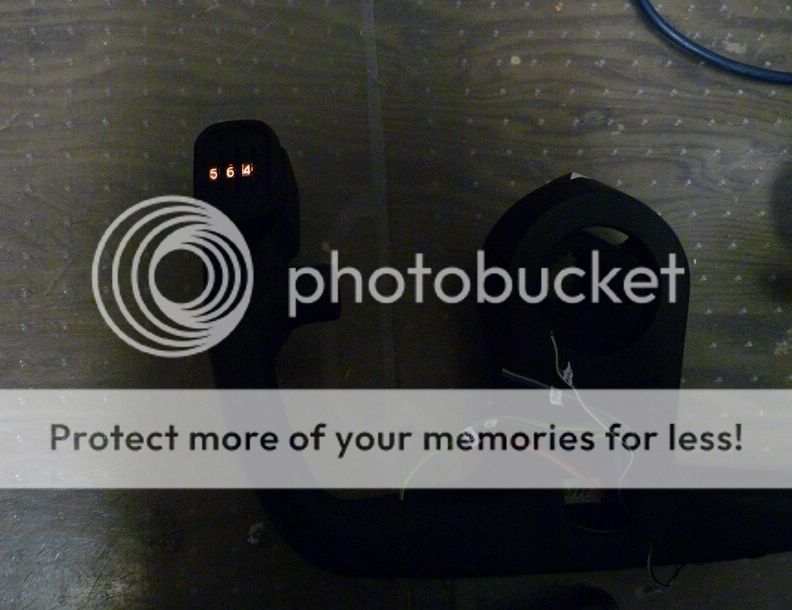

Trip counter backlighting feeds from 12v.



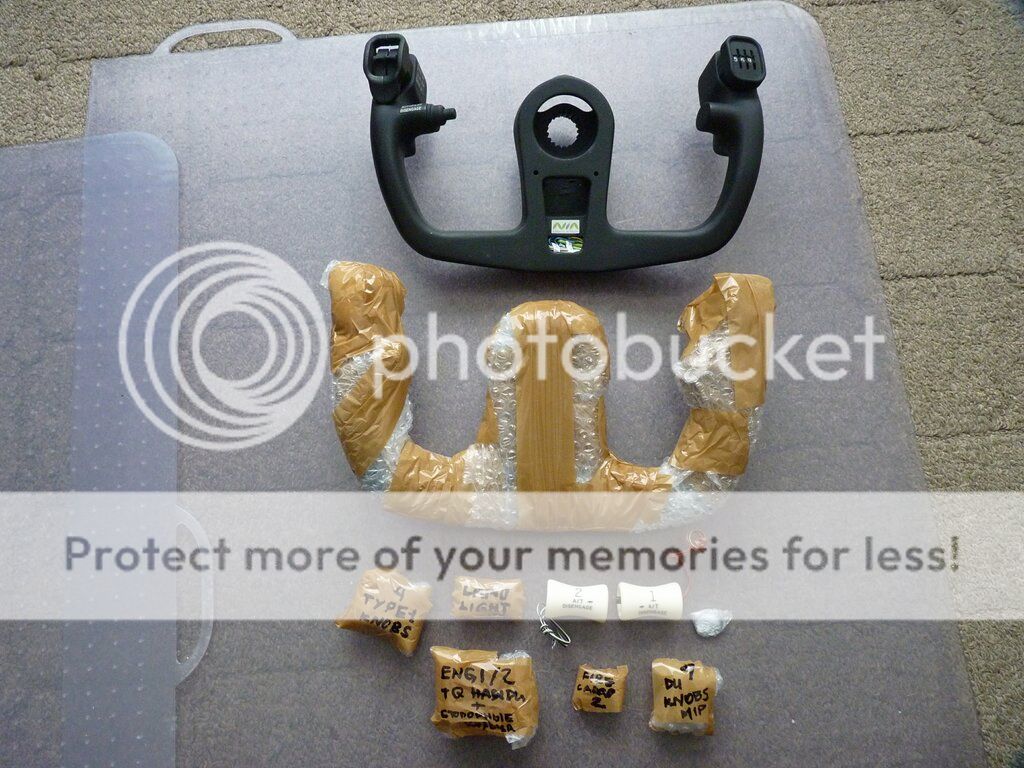

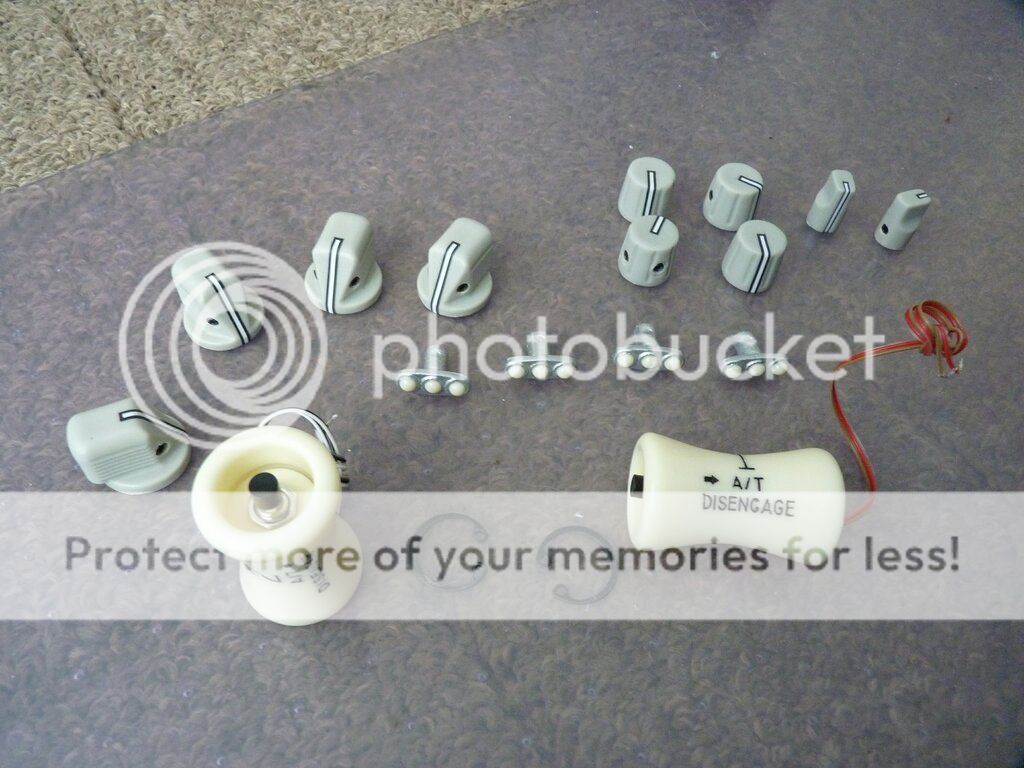

I also got some other stuff from aviasimulation.com:




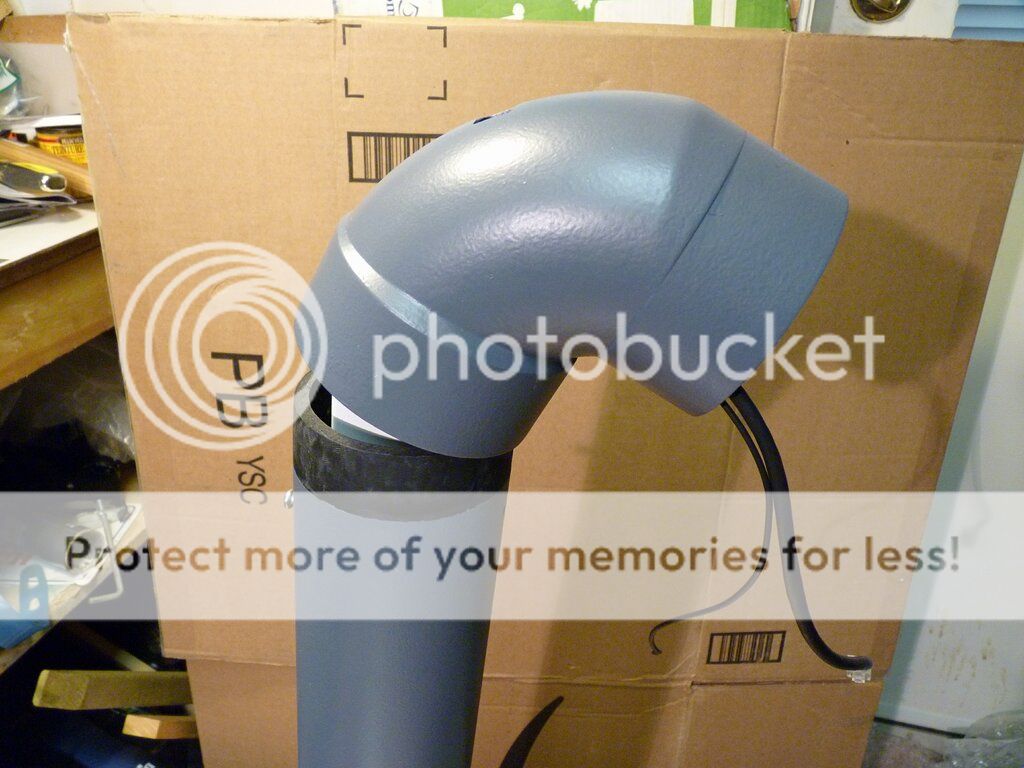

I finished the outer housing for yoke columns - they are made from standard 3" ABS pipes. Outer housing is only decorative and does not have any structure supporting functions.



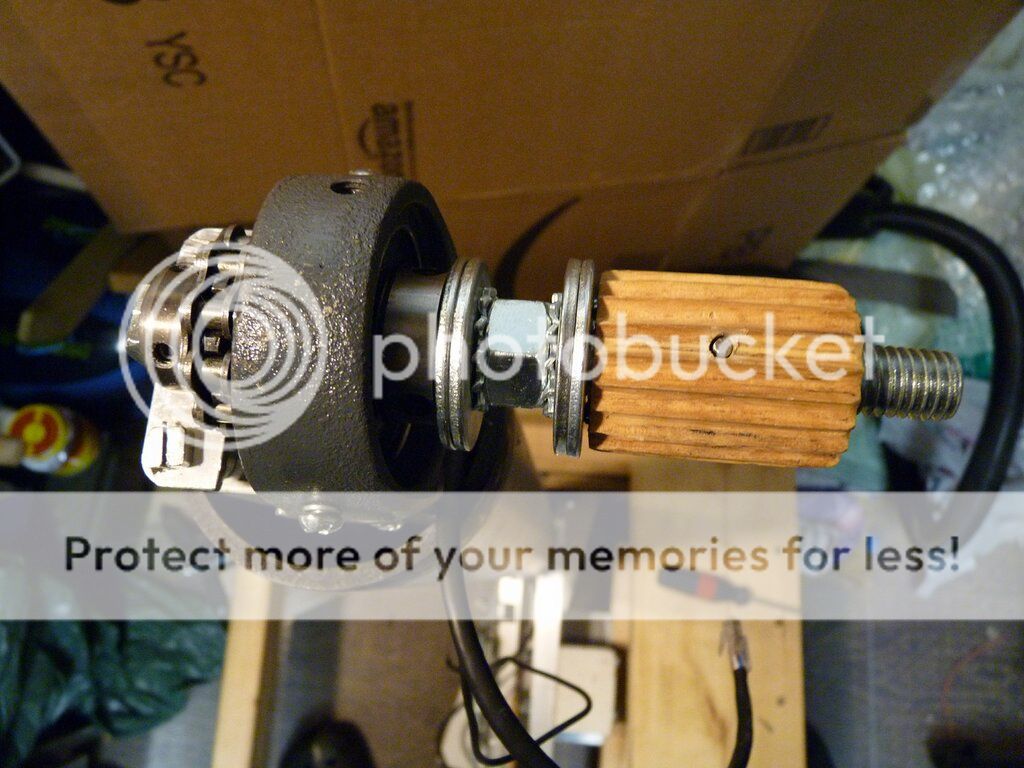

Here is the insert I made to install the yoke on my column:




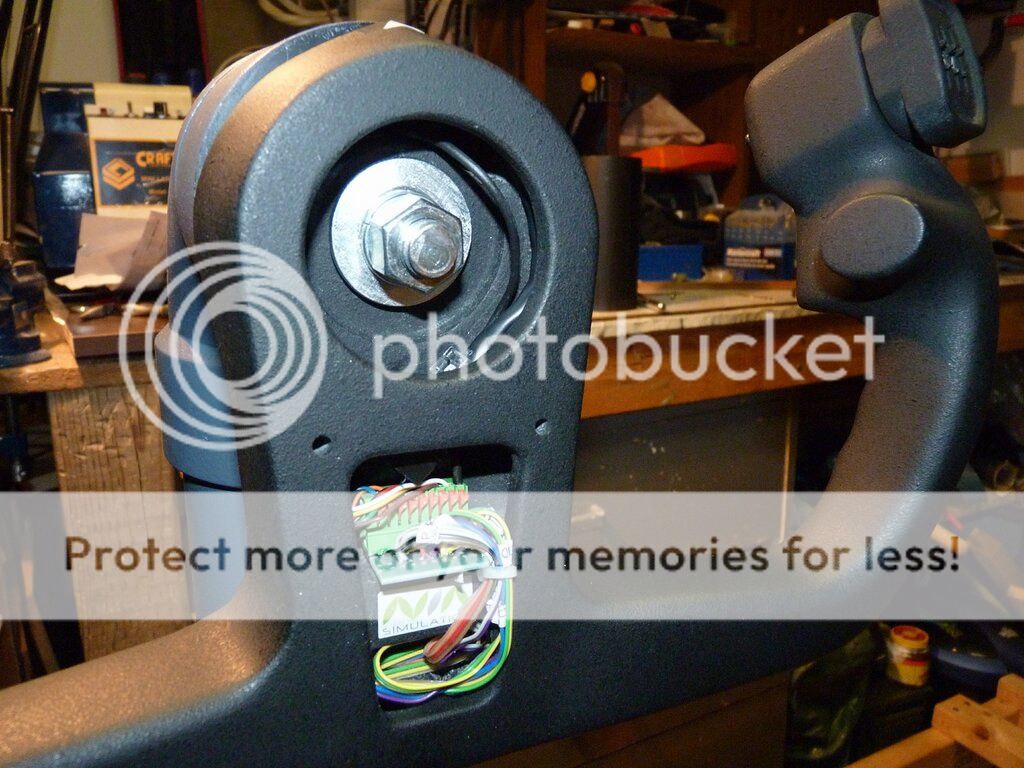

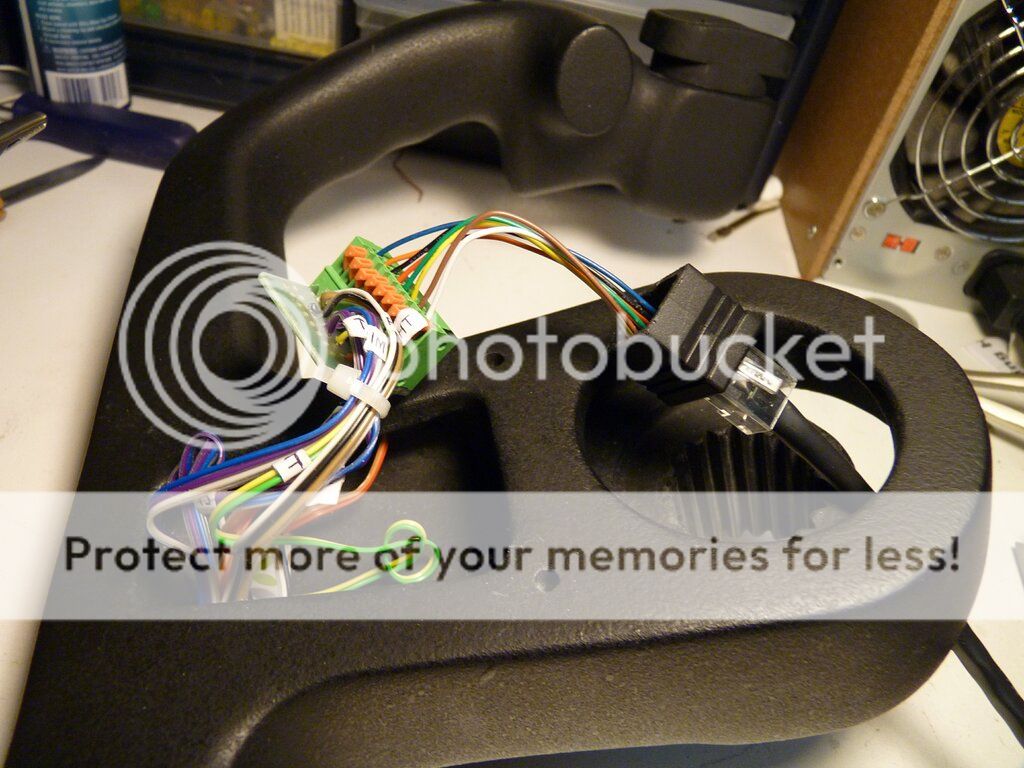

Here is how I completed the yoke wiring:


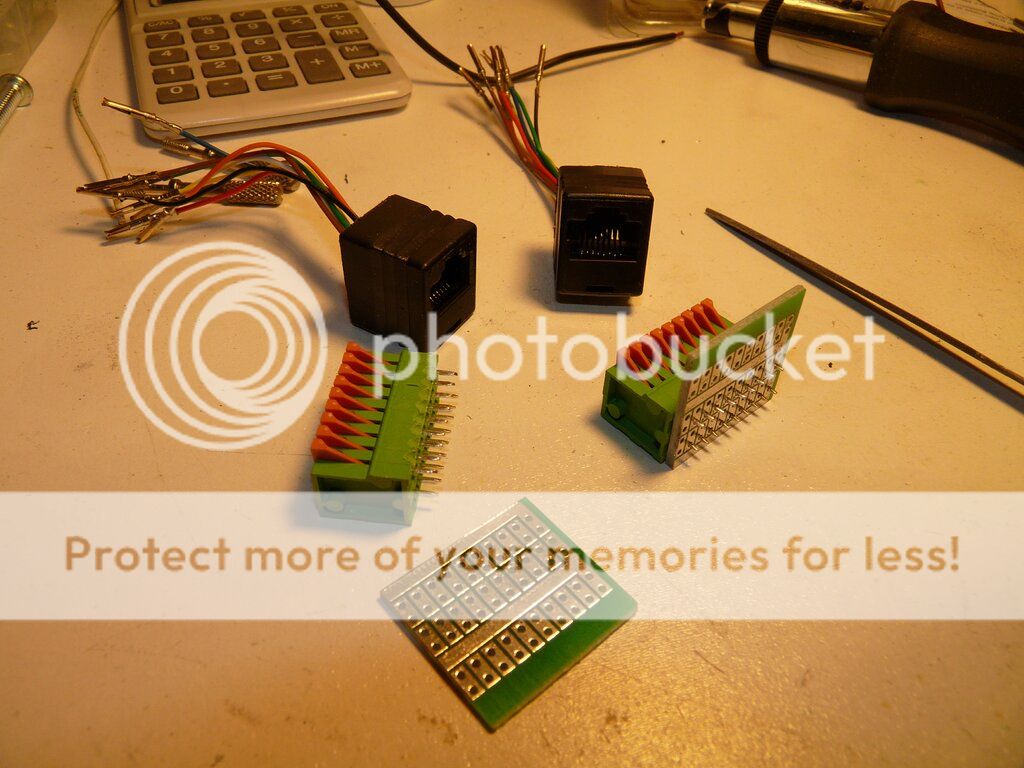

The existed yoke wires went into a small PCB panel where I added those green connectors. Then the wires go from the green connectors to standard CAT5 network connector:



The installed network cable goes in between the actual yoke column and outer housing. Ground wire is separate, as there are only 8 wires in CAT5 cable.



Will post more details later in my building thread.

[jackpilot]

Ingenuity at work !

Well done Nick..as usual.
Jack
