Airbus A320

Started by phil744, August 29, 2011, 06:56:40 pm

Previous topic - Next topic

0 Members and 1 Guest are viewing this topic.

phil744

August 29, 2011, 06:56:40 pm Last Edit: August 29, 2011, 07:14:32 pm by Tyler Reed
Chaps,

Morning, afternoon or evening depending what time zone you happen to be on,

Cast your mind back to this thread http://www.cockpitbuilders.com/community/index.php?topic=826.msg6500#msg6500

That was a little over a year ago when i showed of the A320 for the first time, bet you thought i had finished it, well actually know, started over again, small tweaks and improvements, i think i got panel OCD or something, i think its a illness we all suffer from.

So, recap, re designed all the PCB with a newer type of LED, lower consumption but with higher output, saved about 60 LED's from the whole overhead set, re positioned LEDs further way from the button perimeters, helps avoids hotspots on the buttons, tweaked resister values, now they run stone cold to touch, re designed the the 2 colour panels with separate green/amber sub lightplates, basically there are several lightplates in one, separates the 2 colours better, the Electrical panel is 12 individual lightplates, 11 green, 1 amber. :idiot:

But, finally I'm happy with it, and everyone who has got one from me are happy also.  The airbus for me has gone a bit mental, cant make them fast enough lol.

Out standing bus parts are the ACP, FCU, ECAM, RMU and EFIS, these are the complex keypad panels with dual illuminated switching, finally figured how to make it so its all in tooling now, even injection molding the lightplates for those, as far as i know that's never been done before, good result so far.

As for the switches that go in there that's been a project on the back burner for 2 years now, and a closely guarded secret, but got it figured now, one product i am personally excited about, same switch type for the Lear 45, CRJ, EMB190 and used on the 737 also.

So, the airbus development is coming to an end, will upload it to my site once i get through the backlog, 767 Overhead in the works now and i think i will try my hand at the 737, wot do you think?

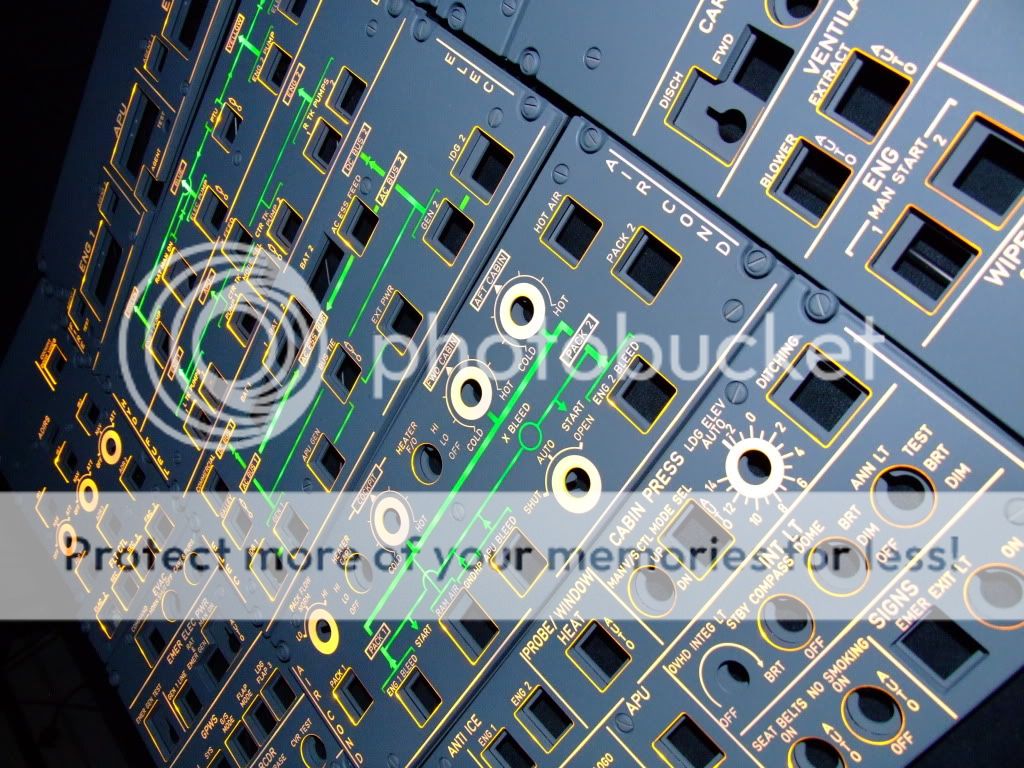

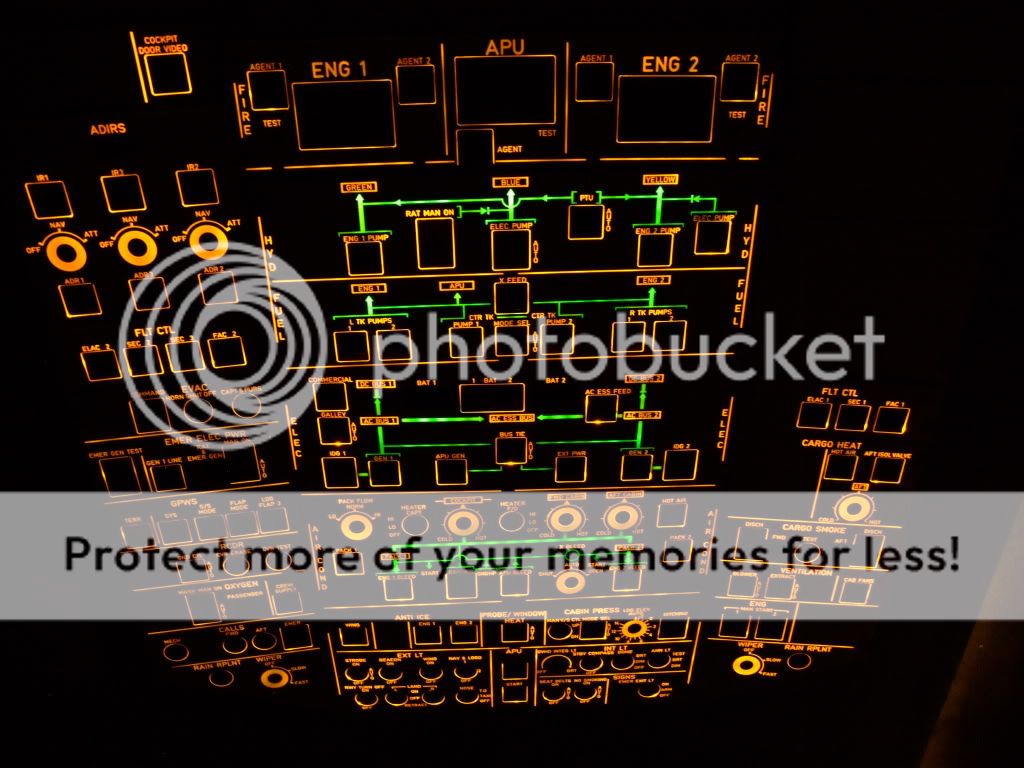

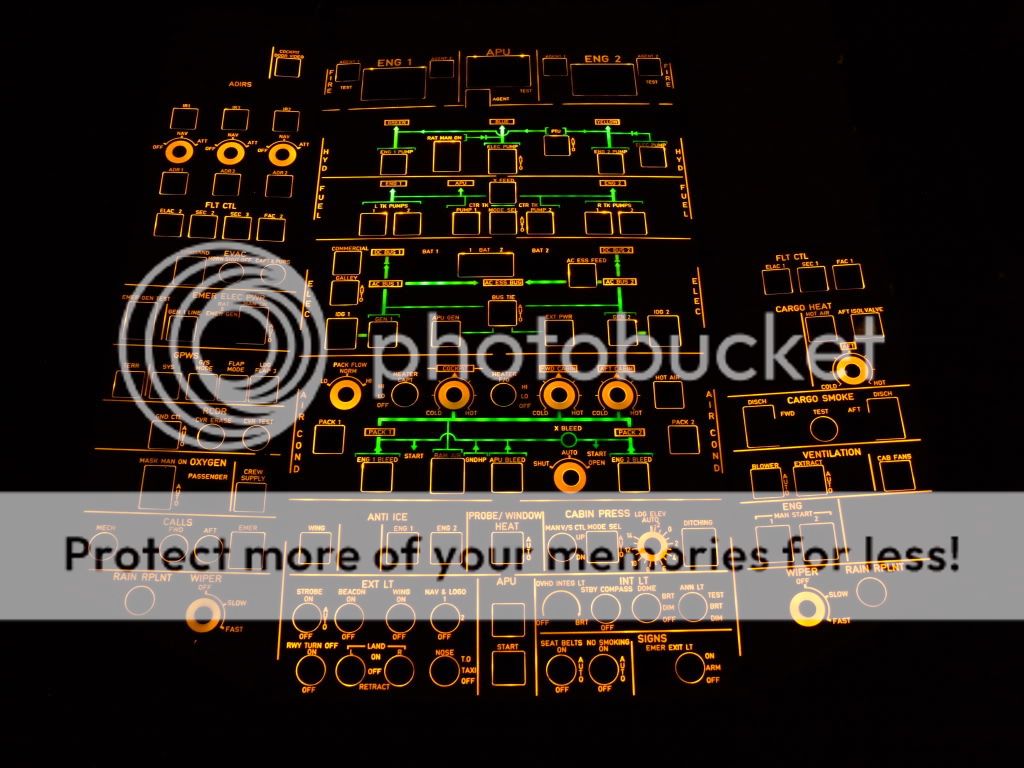

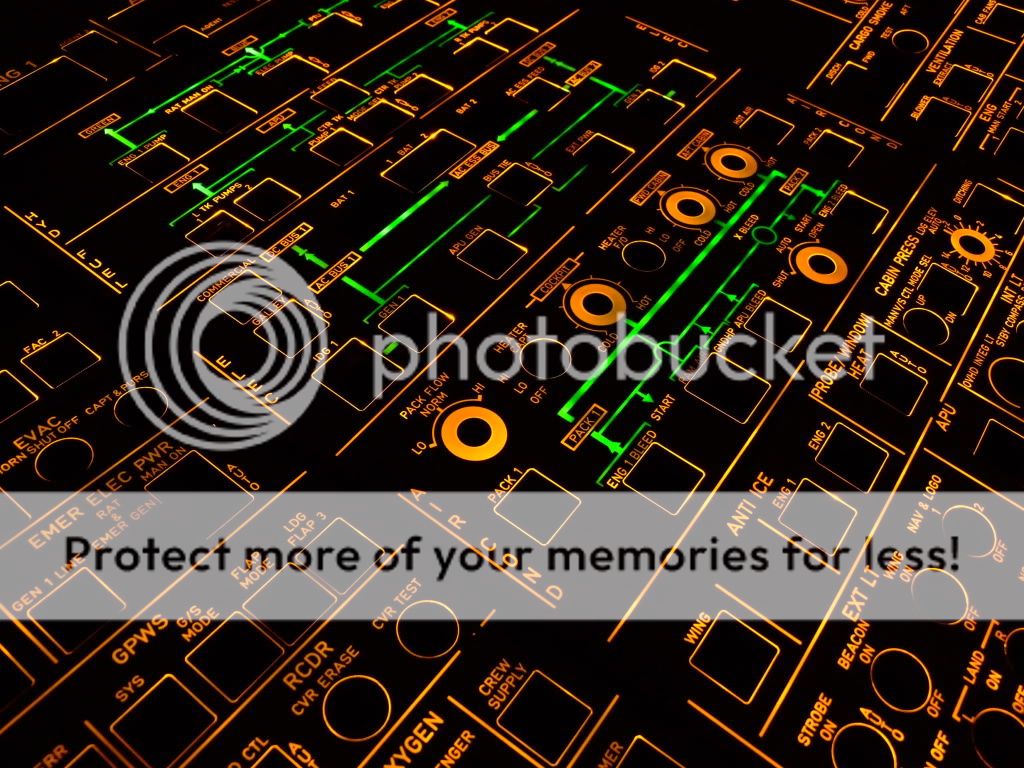

Anyhow, some pics :)

Phil








---------------------------------------------------------------------
757-200, P3D, LD767,Arduino, panels by some british moron, pile of dead airplane parts and a hammer!

Yeah i got one of these facebook things too http://www.facebook.com/Simvionics

rprather

September 21, 2011, 03:15:16 pm #1 Last Edit: September 21, 2011, 05:56:28 pm by rprather
Fantastic progress man! I've been following your progress on Flickr of course. I can only imagine how tricky it is to light two different colors with zero light bleed! Well done.

As for your plans to build the next aircraft parts.... nobody's building the 737 or 767... you should build 777 next ;-)

Trevor Hale

Phil..  *Gobsmacked* Looks awesome.  Great Job.

Trev
Trevor Hale

Owner
http://www.cockpitbuilders.com

Director of Operations
Worldflight Team USA
http://www.worldflightusa.com

VATSIM:

Carlos Hermida

Just one word to say to you Phil...PERFECT !  ;)
Carlos Hermida
Cockpit NG Simulation

Facebook Page:
https://www.facebook.com/cockpitngsimulation/

XOrionFE

holy smokes....

breathtaking!


kondrat

Boeing 777-200LR project
http://www.flikr.com/project777

dodiano

Dude,

From a guy that flew the A-320 That looks just like the real thing!!! Man you should make the panels for Boeing and Airbus bud!!! AMAZING WORK BUD!! The best panels!!

Take care!

phil744

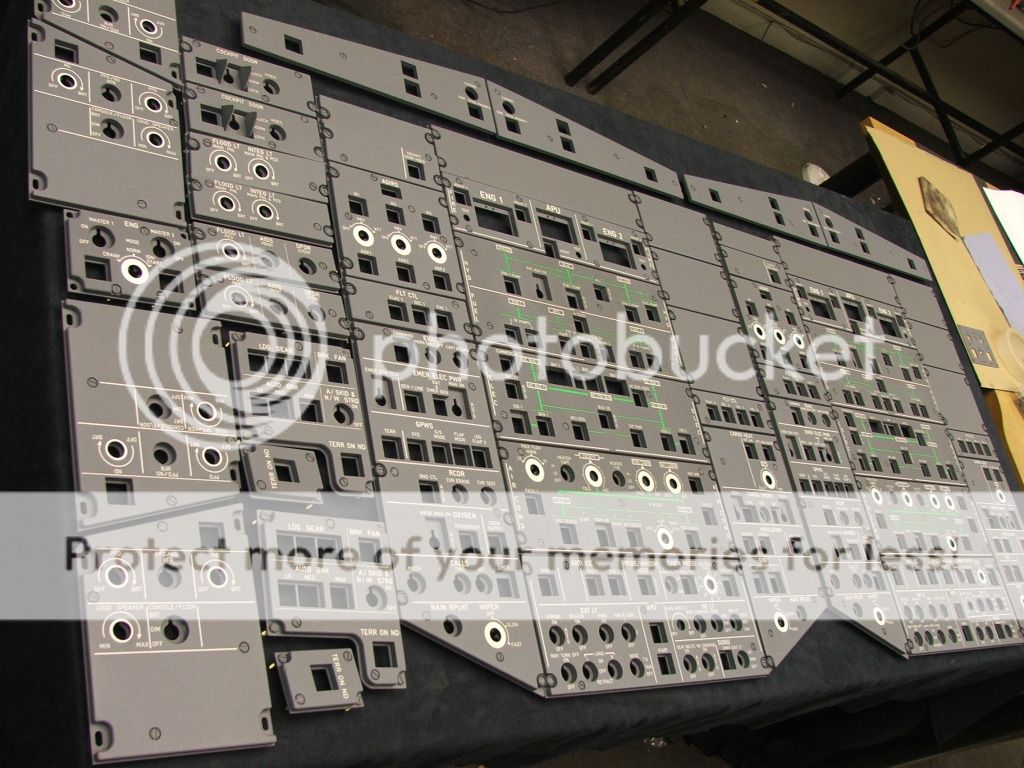

two more done and dusted, only another 28 to go :(



---------------------------------------------------------------------
757-200, P3D, LD767,Arduino, panels by some british moron, pile of dead airplane parts and a hammer!

Yeah i got one of these facebook things too http://www.facebook.com/Simvionics
